Probe Specifications

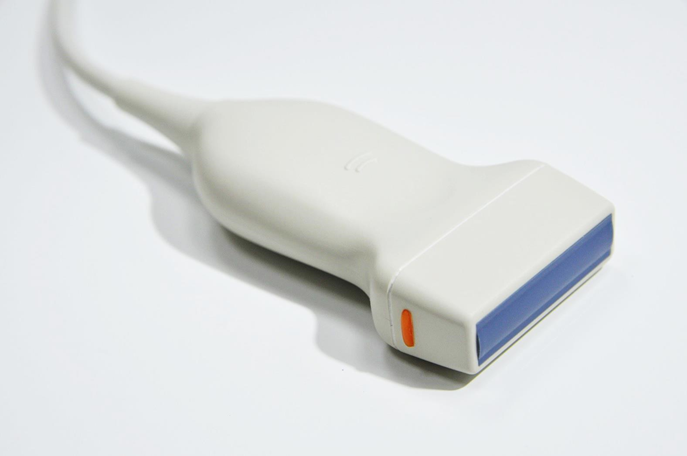

Linear

  • Part Number: L7.5
  • Center Frequency: 7.5MHz
  • Element：128
  • Pitch：0.3mm
  • Elevation Aperture：4.5mm



Linear

  • Part Number: L18
  • Center Frequency: 18MHz
  • Element：128
  • Pitch：0.1mm
  • Elevation Aperture：1.8mm

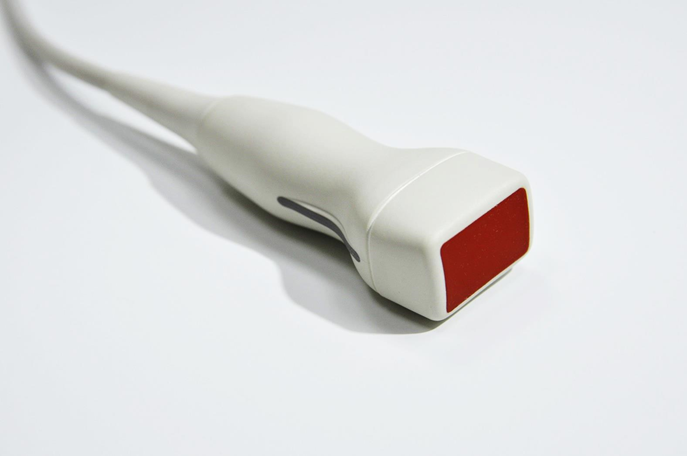

Phased

  • Part Number: P2.5JR
  • Center Frequency: 2.5MHz
  • Element：96
  • Pitch：0.22mm
  • Elevation Aperture：11.5mm

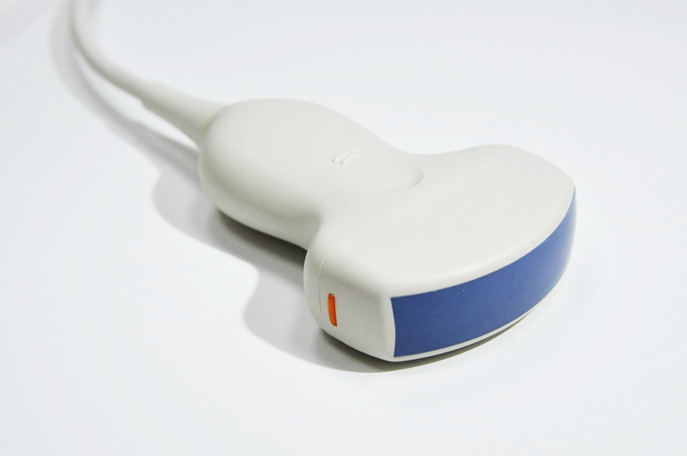

Convex

  • Part Number: C3.2
  • Center Frequency: 3.2MHz
  • Element：128
  • Pitch：0.498mm
  • Elevation Aperture：12.5mm

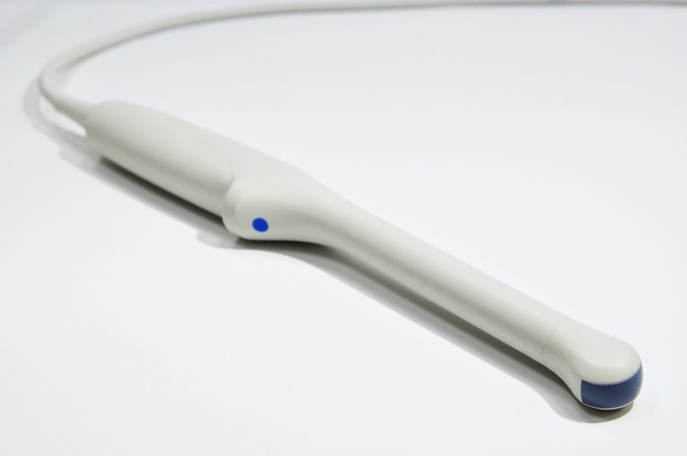

Endocavity

  • Part Number: E6.5
  • Center Frequency: 6.5MHz
  • Element：128
  • Pitch：0.205mm
  • Elevation Aperture：5.5mm





More ...

  • Support of tranducer up to 30MHz
  • Support of all format probes
  • Customized for users' needs
  • Please contact us directly.
